| If you're like me, you tend to rip the car apart and then think about cataloging the hardware. Of course by then it's too late, you have no idea what goes where. Not to worry! Here I'll try to identify each bit of hardware, so if you can't find your originals, you will at least know what you need. |
| If you think something is in error, or want to clarify some information, please contact me at kevin@y2camaro.com. |
|
 |

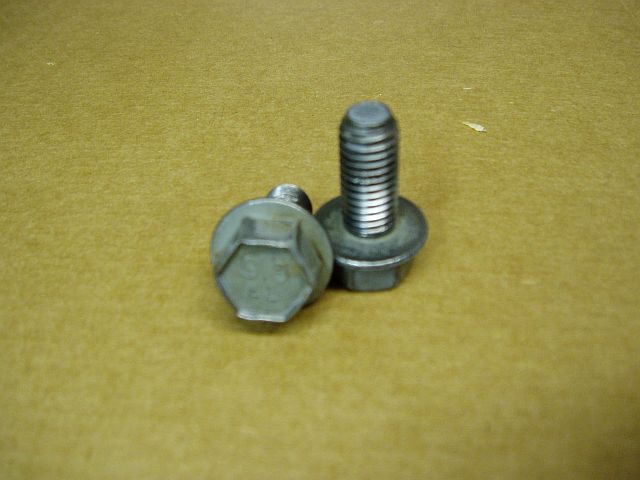

| These are the front swaybar bolts. They are 12mm x 7/8" long flanged head bolts. On the head are the characters 9.8 and EL. These are shown on page 3G-C1 of the 1986 Camaro Assembly Manual as item 5, part number 11502689. |
|
 |

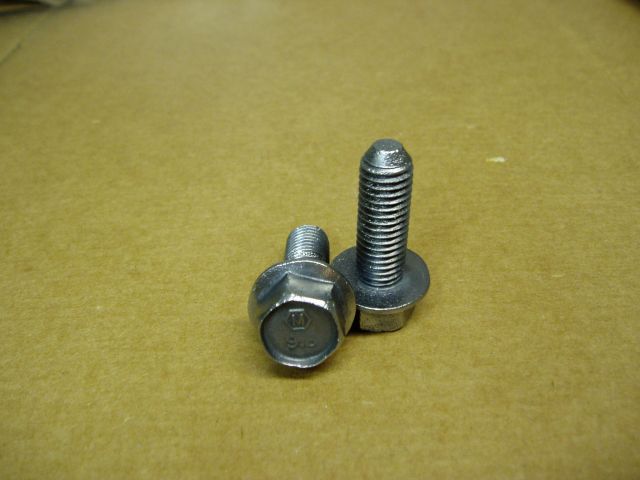

| These are the ??? bolts (I'm still working on figuring out where these go). They are 12mm x 1-1/4" long flanged head bolts. On the head are the characters 9.8 and M. |
|
 |

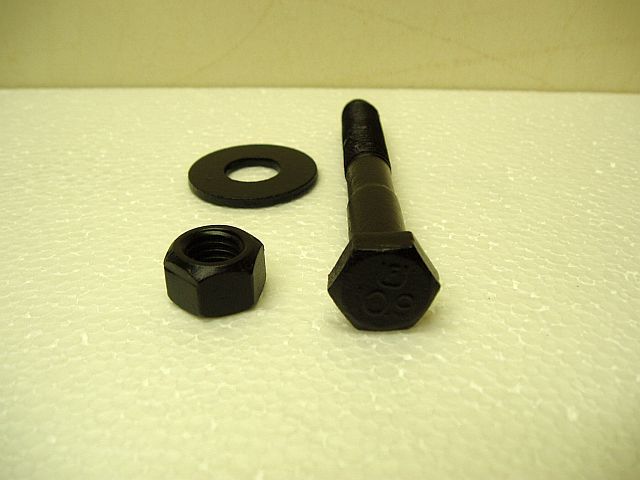

| These are the front lower control arm bolts. They are 14mm stepped to 12mm and 3-3/4" long. They have the markings 10.9 and the letter U with an F inside on the head of the bolt. These are shown on page 3A-C1 of the 1986 Camaro Assembly Manual as item 5 (bolt) part number 11502849, and item 2 (nut) part number 11500756. |
|
 |

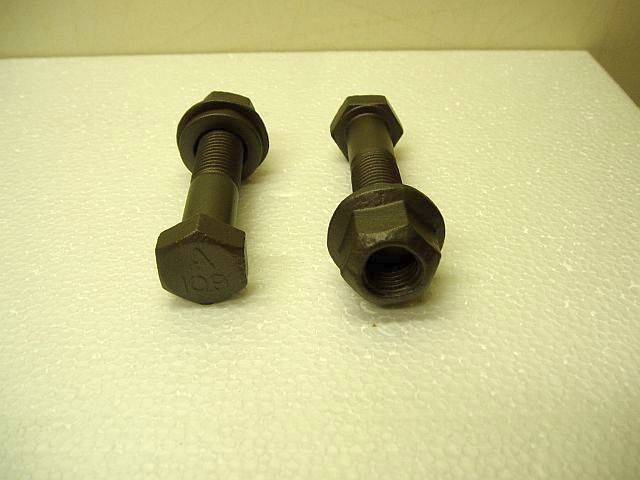

| These are the front strut bolts, 2 per strut. They are 16mm x 3" long. They have the markings 10.9 and A on the head of the bolt. There is also a washer and flange-head nut with each bolt. These are shown on page 3F-C1 of the 1986 Camaro Assembly Manual as item 2 (bolt) part number 14047920, item 3 (washer) part number 14013513, and item 4 (nut) part number 11502815. |
|
 |

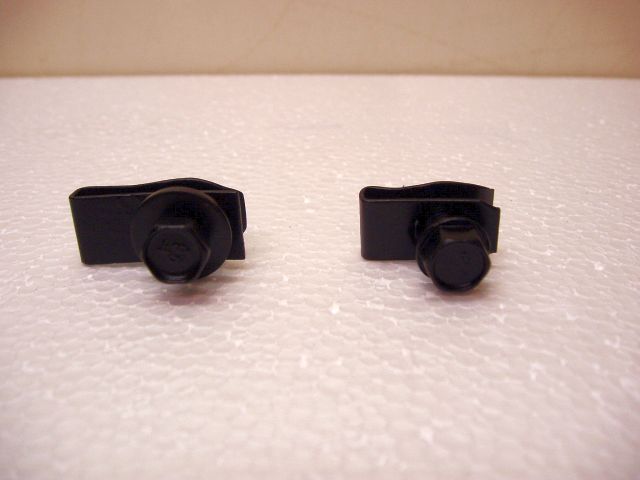

| These bolts and U nuts are used on the radiator support. The bolts with the captive washers are used for the radiator support opening braces. |
|
 |

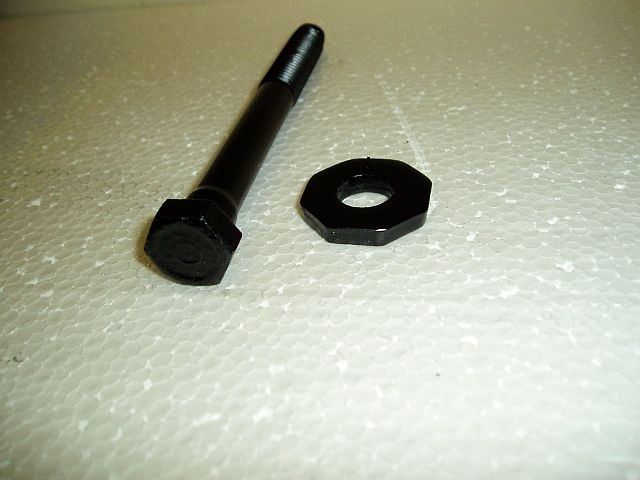

| This is the steering box bolt. There are three of these. Note the octagon shaped washer. |
|
 |

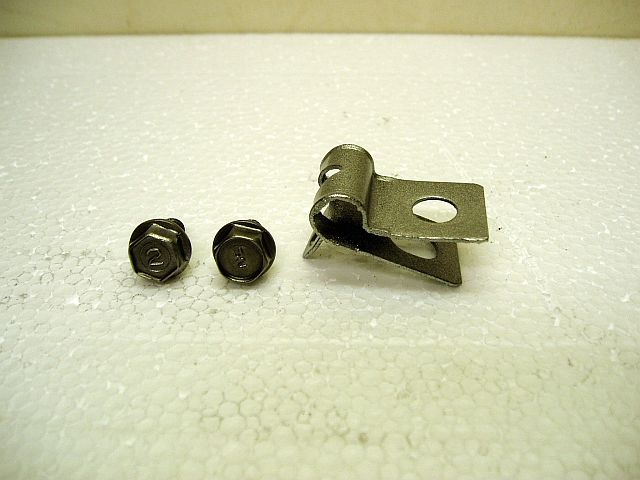

| This is the brake line clamp for the front hard lines that run along the K-member. The screws can have different markings on the head. |
